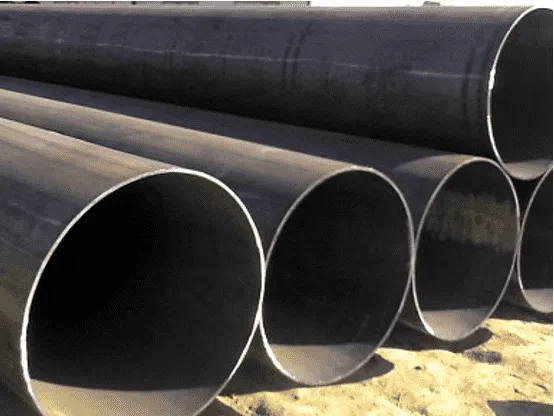

ASTM A53 LSAW Steel Pipe

ASTM A53 LSAW steel pipe refers to longitudinally welded steel pipe (LSAW pipe) manufactured according to ASTM A53/A53M standards. It is primarily used for structural applications, low-pressure fluid transport, and general engineering piping systems.

Due to its high strength, wide size range, moderate cost, and good weldability, it is widely used in oil and gas transportation, building structures, water transport, and foundation engineering. The following outlines the main specifications, manufacturing process, advantages, and typical applications of ASTM A53 LSAW steel pipe.

ASTM A53 LSAW Steel Pipe Overview

ASTM A53 is one of the most widely used carbon steel pipe standards in global engineering projects, producing seamless steel pipes (Type S) and welded steel pipes (Type E, Type F). ASTM A53 LSAW steel pipe is formed when steel plates are formed and welded using submerged arc welding.

ASTM A53 LSAW Steel Pipe Specifications

Outer Diameter: 406 mm – 1626 mm (16" – 64")

Wall Thickness: 6 mm – 50 mm

Single Length: 6 m, 9 m, 12 m or fixed length

Manufacturing Method: UOE / JCOE / Roll Bending

Surface Finish: Black pipe, 3LPE, FBE, epoxy coating, hot-dip galvanized

ASTM A53 Pipe Chemical Composition

Grade	Carbon (C) %	Manganese (Mn) %	Phosphorus (P) %	Sulfur (S) %
A	≤ 0.25	≤ 0.95	≤ 0.05	≤ 0.045
B	≤ 0.3	≤ 1.2	≤ 0.05	≤ 0.045

ASTM A53 Pipe Mechanical Properties

Grade	Yield Strength (min)	Tensile Strength (min)
A	30,000 psi (205 MPa)	48,000 psi (330 MPa)
B	35,000 psi (240 MPa)	60,000 psi (415 MPa)

ASTM A53 LSAW Steel Pipe Manufacturing Process

1. Steel Plate Selection

Select high-quality steel plates according to ASTM A53 requirements.

2. Edge Finishing

The edges of the steel plates are chamfered to form V-grooves.

3. Forming

The steel plates are formed into cylindrical shapes using a press or roll bending machine.

4. Spot Welding

The formed plates are spot welded to maintain their shape.

5. Submerged Arc Welding

The longitudinal seams are welded internally and externally using submerged arc welding. This process ensures deep weld penetration, forming a strong weld.

6. Heat Treatment

The welded pipes may undergo heat treatment to relieve stress and improve mechanical properties.

7. Inspection

The pipes undergo various non-destructive tests, such as ultrasonic testing, radiographic testing, and hydrostatic testing, to ensure weld integrity and pipe quality.

8. Finishing

Final processes include end chamfering, coating, and marking according to customer specifications.

Advantages of ASTM A53 LSAW Steel Pipe

Compared to ERW or seamless steel pipe, LSAW steel pipe offers the following advantages:

1. Large Diameter

Capable of producing pipes exceeding 60 inches in diameter.

2. High Pressure Resistance

Thick-walled structure with strong pressure resistance.

3. Consistent Weld Quality

Submerged arc welding provides deep penetration.

4. Cost Advantage

More economical than seamless large-diameter pipe.

5. Suitable for Long-Distance Pipelines

Commonly used in oil and gas transmission projects.

Uses of ASTM A53 LSAW Steel Pipe

1. Oil and Gas Transportation

Ideal for transporting oil, natural gas, and other liquids.

2. Structural Applications

Used in building structures, bridges, and other infrastructure projects.

3. Water Transportation

Suitable for water supply and drainage systems.

4. Piling

Used as pile pipe in foundation construction.

5. Machinery and Pressure Applications

Used in machinery, boilers, and pressure vessels.

ASTM A53 LSAW vs API 5L LSAW

Project	ASTM A53	API 5L
Main Uses	Structural and low-pressure piping	Oil and gas pipelines
Strength Grade	A / B	B – X80
Testing Requirements	Standard	Strict
Application Industries	Construction, machinery, water transportation	Oil and gas

Generally speaking: ASTM A53 is more suitable for general engineering projects; API 5L is more suitable for oil and gas pipelines.

FAQ

1. What is the difference between ASTM A53 Grade A and Grade B?

ASTM A53 mainly includes two steel grades: Grade A and Grade B. The main difference between them lies in their mechanical properties and application range.

Grade A has lower strength and is typically used for low-pressure fluid transportation, general structural applications, and general mechanical engineering.

Grade B has higher strength, better load-bearing capacity, and reliability, therefore it is more widely used in actual engineering projects, especially in structural engineering, pipeline transportation, and industrial equipment piping systems.

2. What is the difference between LSAW steel pipe and ERW steel pipe?

LSAW steel pipes are formed from rolled steel plates and longitudinally welded using submerged arc welding. They are suitable for producing large-diameter, thick-walled steel pipes and are commonly used in large oil and gas pipelines, marine engineering, and structural engineering.

ERW steel pipes are formed from steel coils and welded using high-frequency resistance welding technology. They are more suitable for producing small and medium-diameter steel pipes and are widely used in mechanical structures, low-pressure fluid transportation, and general industrial pipelines.

Summary

ASTM A53 LSAW steel pipe is a widely used large-diameter welded pipe with good strength, weldability, and economy. Due to its large diameter, high pressure resistance, and stable weld quality, it plays an important role in oil and gas transportation, urban water supply, building structures, and foundation engineering.
